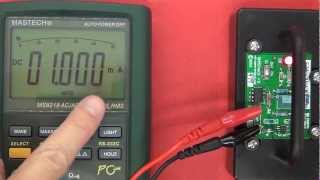

  1. Mastech MS8218 Review - Part 1

  Purchase the Mastech / Sinometer MS8218 here:
  http://astore.amazon.com/m0711-20/det…

  Product Description

  The newly released MS8218 is an auto-range 50,000 count true RMS digital multimeter with high accuracy and resolution. With its 24-bit A/D converter and single-chip micro-processer, it can measure AC/DC current and voltage up to 1000 volts and 10 amps and give you true RMS readings even if it’s a mixed AC/DC signal. You can also use it to measure large resistor (upto 50MOhms) and capacitors (upto 5 mF). This meter comes with a RS232C port and compatible software, so you can easily hook it up with a computer to display, record and plot your measurement on your computer. Its graphic software has a unique dynamic scale so even a tiny variation will be reflected on the computer.

  AC/DC V/A + Resistance + Capacitance + Frequency (linear & logic)
  True RMA reading on AC & AC+DC
  All-range fuse protected
  Software & necessary accessories are include

  Specifications:

  Ranging automatic/manual
  Counts 50000
  DC voltage 50/500mV/5/50/500/1000V ±0.03%
  DC + AC voltage 50/500mV/5/50/500/100V ±0.5%
  DC current 500/5000µA/50/500mA/5/10A ±0.15%
  AC current 500/5000µA/50/500mA/5A ±0.75%, 10A ±1.5%
  Resistance 500Ω/5/50/500kΩ/5MΩ ±0.1%, 50MΩ ±0.5%
  Capacitance 50/500nF/5/50µF ±1%, 500/5000µF ±2%
  Inductancy 2 mH / 20 mH / 200 mH / 2 H 20 H ± 3.0%
  Conductivity wire identification yes
  Diode, transistor test yes
  Automatic power-off yes
  Data Hold yes
  Overload protection yes
  Charge battery indication yes
  Measurement mode of relative quantity yes
  Off-duty factor 5Hz – 500kHz
  max/min value measurement yes
  rms value yes
  Power source 6 1.5V (AAA)
  Dimensions, mm 200 × 100 × 40 mm
  PC interface connection yes

• more detail less detail

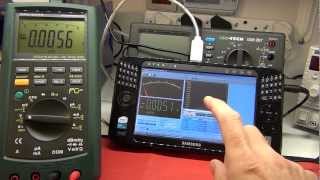

  2. Mastech MS8218 Review - Part 2

  Purchase the Mastech / Sinometer MS8218 here:
  http://astore.amazon.com/m0711-20/det…

  Product Description

  The newly released MS8218 is an auto-range 50,000 count true RMS digital multimeter with high accuracy and resolution. With its 24-bit A/D converter and single-chip micro-processer, it can measure AC/DC current and voltage up to 1000 volts and 10 amps and give you true RMS readings even if it’s a mixed AC/DC signal. You can also use it to measure large resistor (upto 50MOhms) and capacitors (upto 5 mF). This meter comes with a RS232C port and compatible software, so you can easily hook it up with a computer to display, record and plot your measurement on your computer. Its graphic software has a unique dynamic scale so even a tiny variation will be reflected on the computer.

  AC/DC V/A + Resistance + Capacitance + Frequency (linear & logic)
  True RMA reading on AC & AC+DC
  All-range fuse protected
  Software & necessary accessories are include

  Specifications:

  Ranging automatic/manual
  Counts 50000
  DC voltage 50/500mV/5/50/500/1000V ±0.03%
  DC + AC voltage 50/500mV/5/50/500/100V ±0.5%
  DC current 500/5000µA/50/500mA/5/10A ±0.15%
  AC current 500/5000µA/50/500mA/5A ±0.75%, 10A ±1.5%
  Resistance 500Ω/5/50/500kΩ/5MΩ ±0.1%, 50MΩ ±0.5%
  Capacitance 50/500nF/5/50µF ±1%, 500/5000µF ±2%
  Inductancy 2 mH / 20 mH / 200 mH / 2 H 20 H ± 3.0%
  Conductivity wire identification yes
  Diode, transistor test yes
  Automatic power-off yes
  Data Hold yes
  Overload protection yes
  Charge battery indication yes
  Measurement mode of relative quantity yes
  Off-duty factor 5Hz – 500kHz
  max/min value measurement yes
  rms value yes
  Power source 6 1.5V (AAA)
  Dimensions, mm 200 × 100 × 40 mm
  PC interface connection yes
