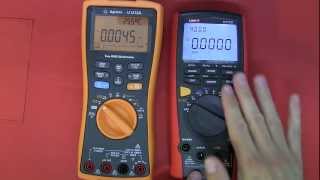

  1. The UNI-T UT71D multimeter Part 1

  In part 1 of this review I take a look at the features, functionality, resolution and accuracy of the UT71D. In some respects I compare it to the Agilent U1272A. I use both the PentaRef and DMMCheck Plus from Doug at VoltageStandard.com

  Review of the UNI-T UT71D multimeter / DMM – 4000 / 40000 count, 0.025% / 0.05% DC accuracy, internal data logging for 10 000 values, PC data logging.

  If there is enough interest in this multimeter Franky will stock it on his eBay store:
  http://www.99centHobbies.com

  Or contact Franky for discount on my forum.

  Further discussion and picture here on my forum: http://mjlorton.com/forum/index.php?t…

  Details and specs of the UNI-T (Unitrend) UT71D:
  http://www.uni-trend.com/UT71d.html

  Basic Functions Range Best Accuracy
  DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
  AC Voltage 4V/40V/400V/1000V (0.4%+30)
  AC Bandwidth 100KHz
  DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
  AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
  Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
  Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
  Temperature (°C) -40°C ~ 1000°C (1%+30)
  Temperature (°F) -40°F ~ 1832°F (1.5%+50)
  Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/­400MHz (0.01%+8)
  Duty Cycle 10%~90% (1%+30)
  4~20mA Loop 0~100% (1%+50)
  Power Measurement
  Special Functions
  Fused 10A Range
  Auto Ranging
  Current Measurement Alarm
  Function Set Up
  Auto Ranging
  Votage & Current : AC + DC Measurement
  Data Logging 9999
  Data Recall
  Diode
  Continuity Buzzer
  True RMS
  Peak Hold
  Max/Min Mode
  Relative Mode
  Data Hold
  USB
  Double Display Backlight
  Full Icon Display
  Sleep Mode
  Low Battery Display
  Input Impedance for DC Voltage Measurement
  DC 200mV : Around 2.5GW
  All Other Ranges : 10MW

  Max. Display 40000
  Analogue Bar Graph

  GENERAL CHARACTERISTICS
  Power 9V Battery (6F22)
  LCD Size 73 x 50 mm
  Product Colour Red and Grey
  Product Net Weight 384g
  Product Size 200 x 93 x 40mm
  Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
  Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
  Standard Individual Packing Gift Box
  Standard Quantity Per Carton 20 pcs
  Standard Carton Measurement

  542 x 376 x 388mm
  (0.079 CBM Per Standard Carton)
  Standard Carton Gross Weight 18kg

• more detail less detail

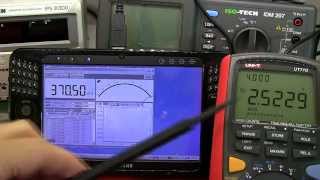

  2. The UNI-T UT71D multimeter Part 2

  In part 1 of this review I take a look at the features, functionality, resolution and accuracy of the UT71D. In some respects I compare it to the Agilent U1272A. I use both the PentaRef and DMMCheck Plus from Doug at VoltageStandard.com

  Review of the UNI-T UT71D multimeter / DMM – 4000 / 40000 count, 0.025% / 0.05% DC accuracy, internal data logging for 10 000 values, PC data logging.

  If there is enough interest in this multimeter Franky will stock it on his eBay store:
  http://www.99centHobbies.com

  Or contact Franky for discount on my forum.

  Further discussion and picture here on my forum: http://mjlorton.com/forum/index.php?t…

  Details and specs of the UNI-T (Unitrend) UT71D:
  http://www.uni-trend.com/UT71d.html

  Basic Functions Range Best Accuracy
  DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
  AC Voltage 4V/40V/400V/1000V (0.4%+30)
  AC Bandwidth 100KHz
  DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
  AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
  Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
  Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
  Temperature (°C) -40°C ~ 1000°C (1%+30)
  Temperature (°F) -40°F ~ 1832°F (1.5%+50)
  Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/­400MHz (0.01%+8)
  Duty Cycle 10%~90% (1%+30)
  4~20mA Loop 0~100% (1%+50)
  Power Measurement
  Special Functions
  Fused 10A Range
  Auto Ranging
  Current Measurement Alarm
  Function Set Up
  Auto Ranging
  Votage & Current : AC + DC Measurement
  Data Logging 9999
  Data Recall
  Diode
  Continuity Buzzer
  True RMS
  Peak Hold
  Max/Min Mode
  Relative Mode
  Data Hold
  USB
  Double Display Backlight
  Full Icon Display
  Sleep Mode
  Low Battery Display
  Input Impedance for DC Voltage Measurement
  DC 200mV : Around 2.5GW
  All Other Ranges : 10MW

  Max. Display 40000
  Analogue Bar Graph

  GENERAL CHARACTERISTICS
  Power 9V Battery (6F22)
  LCD Size 73 x 50 mm
  Product Colour Red and Grey
  Product Net Weight 384g
  Product Size 200 x 93 x 40mm
  Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
  Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
  Standard Individual Packing Gift Box
  Standard Quantity Per Carton 20 pcs
  Standard Carton Measurement

  542 x 376 x 388mm
  (0.079 CBM Per Standard Carton)
  Standard Carton Gross Weight 18kg
