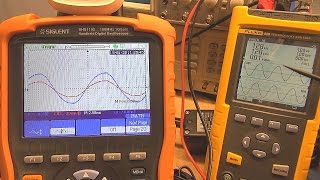

1. Part 1 - Power Factor in Linear LoadsPart 1 of the tutorial on single phase power quality, it covers some theory, analogies and practical demonstrations on the following topics:
* Power factor in linear loads – Real power (Watts), active power, true power, apparent power (VA – Volt Amps), reactive power (VAR- Volt Amps Reactive), phase angle, inductive loads, capacitive loads, leading and lagging power factor.
* Power factor in non-linear loads – harmonics, total harmonic distortion (THD), displacement power factor (DPF), distortion power factor (dPF), true power factor, total power factor.
* Power factor correction – passive, active, dynamic, harmonic filtering, synchronous condensers / capacitors, application of capacitors for power factor correction.
* Power grid stability – Use of VAR (reactive power) to stabilise grid voltage.
* Negative and positive effects of large solar (PV) power generation on the grid.
* Do the power factor correction devices for your home save you money?
Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
* Quick demonstration of some tools to measure power quality:
Siglent SHS 1102 Oscilloscope – http://www.tester.co.uk/siglent-shs11…
HT Instruments HT2209 – http://www.ht-instruments.com/en/prod…
Fluke 345 – http://en-us.fluke.com/products/power…
Fluke 43B – http://www.fluke.com/Fluke/caen/Power…
Power factor calculator – http://www.rapidtables.com/calc/elect…
Reactive Power Control in Utility-Scale PV – http://solarprofessional.com/articles…
Inverter Reactive Power Compensation – http://www.blueoakenergy.com/blog/inv…
Meet Solar’s Imaginary Friend, Reactive Power – http://www.renewableenergyworld.com/r…
Power Factor Correction Scam Review – http://www.nlcpr.com/Deceptions1.php
What are non-linear loads and why are they a concern today?
http://www.mirusinternational.com/dow…Power factor Wiki – http://en.wikipedia.org/wiki/Power_fa…
Synchronous Condenser (sometimes called a synchronous capacitor or synchronous compensator) – http://en.wikipedia.org/wiki/Synchron…
tutorial on single phase power quality, it covers some theory, analogies and practical demonstrations on the following topics:
* Power factor in linear loads – Real power (Watts), active power, true power, apparent power (VA – Volt Amps), reactive power (VAR- Volt Amps Reactive), phase angle, inductive loads, capacitive loads, leading and lagging power factor.
* Power factor in non-linear loads – harmonics, total harmonic distortion (THD), displacement power factor (DPF), distortion power factor (dPF), true power factor, total power factor.
* Power factor correction – passive, active, dynamic, harmonic filtering, synchronous condensers / capacitors, application of capacitors for power factor correction.
* Power grid stability – Use of VAR (reactive power) to stabilise grid voltage.
* Negative and positive effects of large solar (PV) power generation on the grid.
* Do the power factor correction devices for your home save you money?
* Quick demonstration of some tools to measure power quality:
Siglent SHS 1102 Oscilloscope – http://www.tester.co.uk/siglent-shs11…
HT Instruments HT2209 – http://www.ht-instruments.com/en/prod…
Fluke 345 – http://en-us.fluke.com/products/power…
Fluke 43B – http://www.fluke.com/Fluke/caen/Power…
Power factor calculator – http://www.rapidtables.com/calc/elect…
Reactive Power Control in Utility-Scale PV – http://solarprofessional.com/articles…
Inverter Reactive Power Compensation – http://www.blueoakenergy.com/blog/inv…
Meet Solar’s Imaginary Friend, Reactive Power – http://www.renewableenergyworld.com/r…
Power Factor Correction Scam Review – http://www.nlcpr.com/Deceptions1.php
What are non-linear loads and why are they a concern today?
http://www.mirusinternational.com/dow…Power factor Wiki – http://en.wikipedia.org/wiki/Power_fa…
Synchronous Condenser (sometimes called a synchronous capacitor or synchronous compensator) – http://en.wikipedia.org/wiki/Synchron…
-

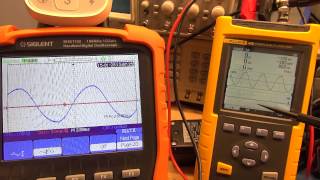

2. Part 2 - Power Factor in Non-Linear LoadsPart 2 of the tutorial on single phase power quality, it covers some theory, analogies and practical demonstrations on the following topics:
* Power factor in linear loads – Real power (Watts), active power, true power, apparent power (VA – Volt Amps), reactive power (VAR- Volt Amps Reactive), phase angle, inductive loads, capacitive loads, leading and lagging power factor.
* Power factor in non-linear loads – harmonics, total harmonic distortion (THD), displacement power factor (DPF), distortion power factor (dPF), true power factor, total power factor.
* Power factor correction – passive, active, dynamic, harmonic filtering, synchronous condensers / capacitors, application of capacitors for power factor correction.
* Power grid stability – Use of VAR (reactive power) to stabilise grid voltage.
* Negative and positive effects of large solar (PV) power generation on the grid.
* Do the power factor correction devices for your home save you money?
Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
* Quick demonstration of some tools to measure power quality:
Siglent SHS 1102 Oscilloscope – http://www.tester.co.uk/siglent-shs11…
HT Instruments HT2209 – http://www.ht-instruments.com/en/prod…
Fluke 345 – http://en-us.fluke.com/products/power…
Fluke 43B – http://www.fluke.com/Fluke/caen/Power…
Power factor calculator – http://www.rapidtables.com/calc/elect…
Reactive Power Control in Utility-Scale PV – http://solarprofessional.com/articles…
Inverter Reactive Power Compensation – http://www.blueoakenergy.com/blog/inv…
Meet Solar’s Imaginary Friend, Reactive Power – http://www.renewableenergyworld.com/r…
Power Factor Correction Scam Review – http://www.nlcpr.com/Deceptions1.php
What are non-linear loads and why are they a concern today?
http://www.mirusinternational.com/dow…Power factor Wiki – http://en.wikipedia.org/wiki/Power_fa…
Synchronous Condenser (sometimes called a synchronous capacitor or synchronous compensator) – http://en.wikipedia.org/wiki/Synchron…
-
3. Part 3 - Power Factor CorrectionPart 3 of the tutorial on single phase power quality, it covers some theory, analogies and practical demonstrations on the following topics:
* Power factor in linear loads – Real power (Watts), active power, true power, apparent power (VA – Volt Amps), reactive power (VAR- Volt Amps Reactive), phase angle, inductive loads, capacitive loads, leading and lagging power factor.
* Power factor in non-linear loads – harmonics, total harmonic distortion (THD), displacement power factor (DPF), distortion power factor (dPF), true power factor, total power factor.
* Power factor correction – passive, active, dynamic, harmonic filtering, synchronous condensers / capacitors, application of capacitors for power factor correction.
* Power grid stability – Use of VAR (reactive power) to stabilise grid voltage.
* Negative and positive effects of large solar (PV) power generation on the grid.
* Do the power factor correction devices for your home save you money?
Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
* Quick demonstration of some tools to measure power quality:
Siglent SHS 1102 Oscilloscope – http://www.tester.co.uk/siglent-shs11…
HT Instruments HT2209 – http://www.ht-instruments.com/en/prod…
Fluke 345 – http://en-us.fluke.com/products/power…
Fluke 43B – http://www.fluke.com/Fluke/caen/Power…
Power factor calculator – http://www.rapidtables.com/calc/elect…
Reactive Power Control in Utility-Scale PV – http://solarprofessional.com/articles…
Inverter Reactive Power Compensation – http://www.blueoakenergy.com/blog/inv…
Meet Solar’s Imaginary Friend, Reactive Power – http://www.renewableenergyworld.com/r…
Power Factor Correction Scam Review – http://www.nlcpr.com/Deceptions1.php
What are non-linear loads and why are they a concern today?
http://www.mirusinternational.com/dow…Power factor Wiki – http://en.wikipedia.org/wiki/Power_fa…
Synchronous Condenser (sometimes called a synchronous capacitor or synchronous compensator) – http://en.wikipedia.org/wiki/Synchron…
-

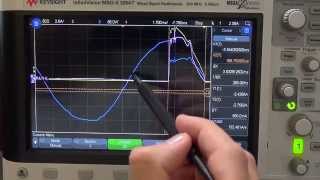

4. Measuring Inrush Current with an Oscilloscope, Circuit Breakers and Clamp MetersIn this video I use an oscilloscope to measure the inrush current caused by an induction motor starting with a variable speed drive (VFD). I do this to show some of the challenges clamp meters can face getting this measurement as an RMS reading when there is distortion of the waveform.
I also explain how an electrothermal circuit breaker works by preventing overloads and short circuits.
* Circuit breaker instantaneous tripping current, should it be RMS or peak current?Equipment used:
* Agilent / Keysight DSO-X 2000 Oscilloscope
* HT Instruments HT9022 Power Clamp Meter
* Yokogawa CW10 Power Clamp Meter
* Fluke 43B Power Quality Analyzer
* Thermal magnetic circuit breakerWatch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
Useful links:
Circuit Breakers – How they Work, What’s Inside :
https://www.youtube.com/watch?v=u6I7d…Circuit Breakers:
http://en.wikipedia.org/wiki/Circuit_… -
5. How Does a Circuit Breaker / Trip Switch Work? - Part 1In this video:
* We take a look inside a thermal magnetic circuit breaker to see how it works with both AC and DC.
* I do a practical demonstration on how the circuit breaker works to protect against overloads and short circuits.
* We take a look at some circuit breaker ratings such as:
In: Rated current – maximum current that the breaker is designed to carry continuously at an ambient air temperature of 30 °C.
Icu: Ultimate short-circuit breaking capacity.
Ics: service short-circuit breaking capacity.
* I test what parameters (voltage vs current) affect the overload protection of a circuit.
* I demonstrate the instantaneous breaking / tripping capability of a circuit breaker on an oscilloscope under various loads.
* I show circuit beakers that are designed to cater for electric motor start-up inrush current with an adjustable instantaneous trip setting.Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
http://en.wikipedia.org/wiki/Circuit_…
Understanding Electric shock / Electrocution:
http://en.wikipedia.org/wiki/Electric… -
6. How Does a Circuit Breaker / Trip Switch Work? - Part 2In this video:
* We take a look inside a thermal magnetic circuit breaker to see how it works with both AC and DC.
* I do a practical demonstration on how the circuit breaker works to protect against overloads and short circuits.
* We take a look at some circuit breaker ratings such as:
In: Rated current – maximum current that the breaker is designed to carry continuously at an ambient air temperature of 30 °C.
Icu: Ultimate short-circuit breaking capacity.
Ics: service short-circuit breaking capacity.
* I test what parameters (voltage vs current) affect the overload protection of a circuit.
* I demonstrate the instantaneous breaking / tripping capability of a circuit breaker on an oscilloscope under various loads.
* I show circuit beakers that are designed to cater for electric motor start-up inrush current with an adjustable instantaneous trip setting.Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
http://en.wikipedia.org/wiki/Circuit_…
Understanding Electric shock / Electrocution:
http://en.wikipedia.org/wiki/Electric… -

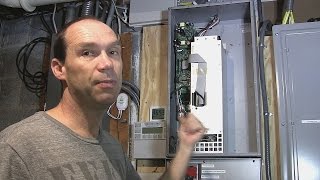

7. Electrical safety considerationsMy Outback Radian Inverter “failed”….
In this video I cover some electrical safety considerations if you are going to work on an electrical system / breaker box / DB board / Inverters / battery bank.
* Personal safety to prevent electrocution
* Safe electrical / insulated tools : http://www.tester.co.uk/tools-and-acc…
* Safe procedures / rules to follow when working on electrical systems.Watch the entire playlist here: http://www.mjlorton.com/ac-power-and-electrics/
http://electrical-engineering-portal….
Do consider that you might be breaking the law by working on your own electrical system.
As with most things in life, use your common sense.
Do wear safety glasses.
Read the other comments posted on this video.Just another note:
Every time you sing “Happy Birthday to You” in public, you’re breaking the law.
-
-
-
These videos will look into power quality in single phase power, power factor in linear and non linear loads, power factor correction, reactive power on the grid. I look into the devices that plug into your house to save 25 -30 percent on your household bill so see if they actually work. I also demonstrate some of the tools that can be used for power quality monitoring: Ocilloscope, Fluke 43B, Fluke 345, HT 9022.
In the later videos I explain how circuit breakers / trip switches work and discuss some important safety aspects for working on AC power
-
-
